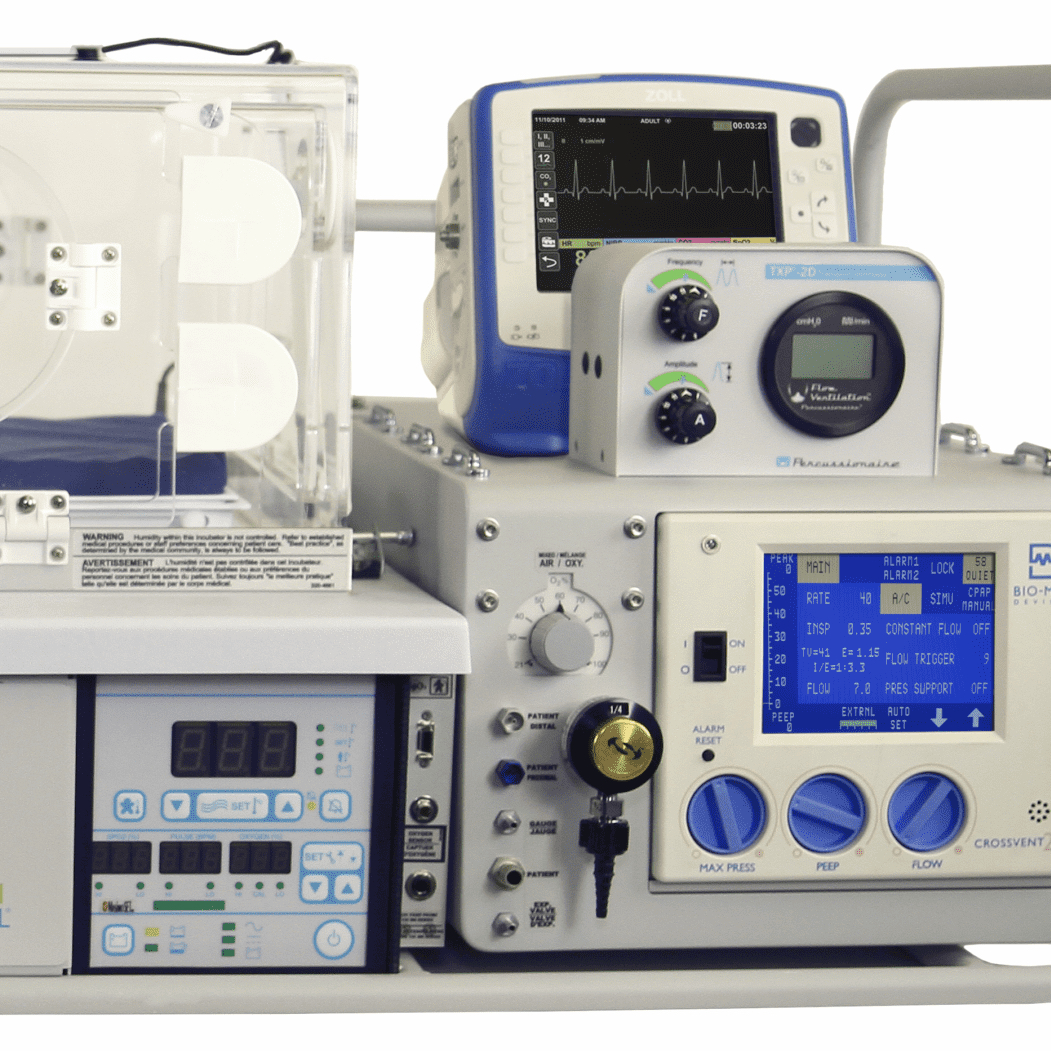

A high frequency ventilator delivers tiny, rapid breaths to patients with severe lung problems. It works at rates of 150 to 900 breaths per minute. This is much faster than normal breathing. The device helps patients with acute respiratory failure or damaged lungs. It reduces lung injury while providing oxygen. High frequency ventilators are used in neonatal units and adult ICUs for the most critical cases.
Overview of Main Components
A high frequency ventilator includes several specialized systems. The oscillatory driver creates the rapid pressure pulses. The gas delivery system supplies fresh air and oxygen. The control module manages all ventilation parameters. The monitoring system tracks patient responses. The safety systems prevent harm from improper settings. The patient circuit connects to the airway. The power management system ensures continuous operation. The housing contains and organizes all components.
Detailed Component Analysis
Oscillatory Driver: Creates ultra-fast pressure waves. It uses a piston, diaphragm, or jet system. This component must work reliably at extremely high speeds.
Frequency Control: Sets the breathing rate from 150 to 900 cycles per minute. It can be adjusted based on patient needs. The control must maintain precise timing.
Amplitude Adjustment: Controls the size of each tiny breath. It determines how much air moves in and out. Higher amplitudes provide more gas exchange.
Mean Airway Pressure System: Maintains the average pressure in the lungs. It keeps air sacs open for oxygen transfer. This pressure is critical for lung function.
Gas Blending Module: Mixes oxygen and air to the right concentration. It can deliver from 21% to 100% oxygen. The mixture is adjusted based on blood oxygen levels.
Humidification System: Adds moisture to the air before it enters the lungs. It prevents drying of airways and secretions. The system must work with tiny breaths.
Advanced Monitoring Display: Shows waveforms and pressure readings. It helps doctors see how the lungs respond. Modern units include touchscreen interfaces.
Safety Alarm System: Alerts staff to problems with pressures or gas flow. It includes backup power warnings. Some alarms cannot be silenced until fixed.
Patient Circuit: Connects the ventilator to the patient’s airway. It must handle high frequencies without dampening. Special tubing reduces resistance.
Battery Type Section
High-Performance Lithium Battery Packs: Power the unit during transport. They must deliver consistent power even under high loads. These batteries have special protection circuits.
Redundant Battery Systems: Use multiple battery modules for safety. If one fails, others take over instantly. This design is essential for life-support equipment.
Rapid-Charge Capability: Allows batteries to reach 80% charge in under an hour. This minimizes downtime between uses. The charging system monitors battery health.
Extended Runtime Modules: Provide 2-4 hours of operation away from wall power. They support patient transport between facilities. These batteries include cooling systems for reliable operation.
Smart Power Management: Extends battery life by adjusting internal systems. It shifts power to critical components first. The system warns staff well before power is depleted.
