7.2V Series Smart Battery

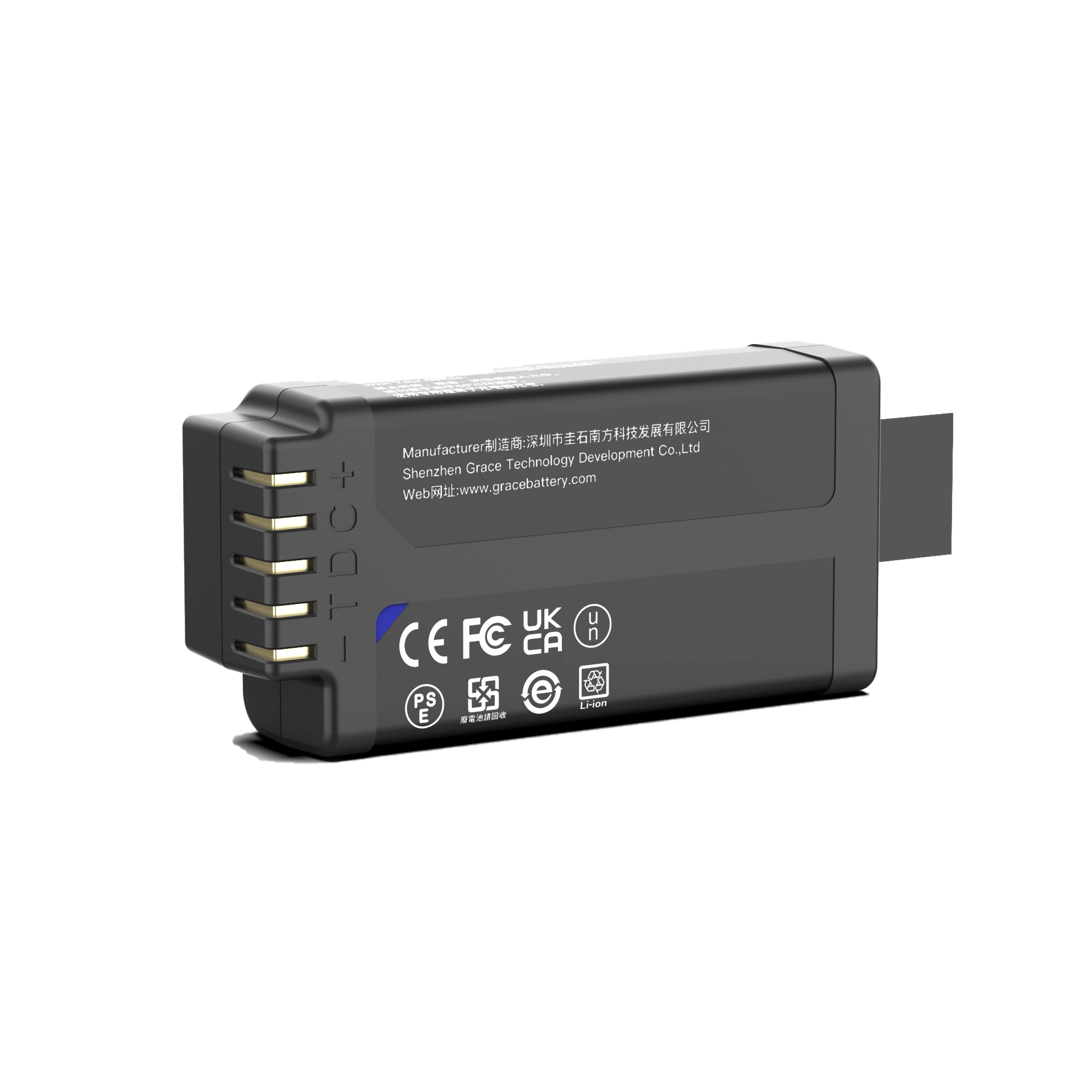

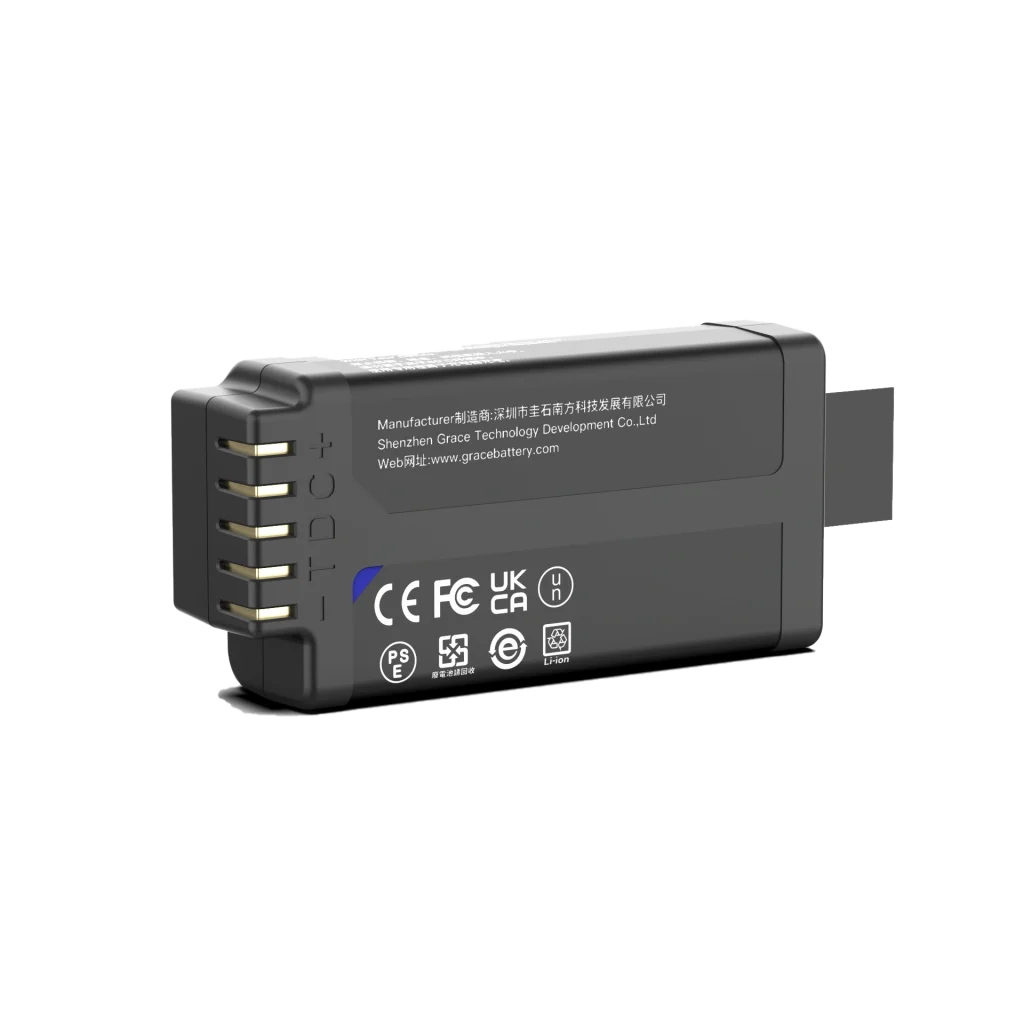

GS2037BH Standard Smart Lithium Battery Pack

Name: GS2037BH - Tefoo
SKU: GS2037BH

7.2V/3450mAh/23.76Wh

Rated voltage7.2 V

Nominal capacity3450 mAh

Weight130 +/- 10 g

Request Quote Download Datasheet

No NRE standard platformSMBus BMSMedical / industrial use

Product overview

Ready for device integration and purchasing review

2S1P Standard Battery Pack GS2037BH With CCC Certification is a medical equipment battery designed to power your Handheld XRF Spectrometer. TEFOO helps you get your devices ready for production ASAP.

Technical specifications

Electrical, mechanical and integration data

Download PDF

Information

Factory capacity: 20%~30%
Compliance information: CE/FCC/IEC62133/UN38.3/PSE/UKCA/ REACH/RoHS/ (EU) 2023/1542/GOST-R
Operating temperature: 0°C~50°C (Charge) -20°C~60°C (Discharge)
Storage temperature: -20°C~50°C（Maximum） -20°C~25°C（Recommend）

Electrical properties

Rated voltage: 7.2 V
Rated capacity: 3300 mAh
Nominal capacity: 3450 mAh
Maximum charging current: 2.41 A
Internal resistance: <100mOhm@1kHz at 25C
Maximum charging voltage: 8.4 V
Maximum discharge current: 4.0 A
Cycle life: 500 cycles >=80% Rated capacity

Dimensions

Length: 85.0 +/- 0.3 mm
Width: 42.0 +/- 0.3 mm
Thickness: 22.4 +/- 0.3 mm
Weight: 130 +/- 10 g
Interface

Smart battery system

Built around communication, protection and lifecycle management

Use this section to explain the functions engineering teams look for before selecting a medical or industrial smart battery pack.

SMBus Data

Host devices can read battery status, fuel-gauge information and protection events through the smart battery interface.

Fuel Gauge

SOC indication helps operators understand remaining runtime before a battery swap or recharge is needed.

Protection BMS

Designed around over-charge, over-discharge, over-current, over-temperature and short-circuit protection.

JEITA Charging

Charging behavior can be optimized around cell temperature for safer use in professional portable devices.

Cell Balancing

Balancing support helps improve pack consistency and useful service life over repeated cycles.

Redundant Safety

Project teams can request fuse, transport, safety and compliance documentation during evaluation.
