Overview
- Input interface
- 2.1φx5.5φDC
- Output Interface
- 5PIN Blade smart battery interface
- Operate temperature
- -30°C~70°C
- Charge temperature
- 0°C~50°C
- Charging time
- GS2054DH: 2.2h GS2054HH: 4.4h
Standard smart battery
GSCH054D Standard Smart Lithium Battery Pack

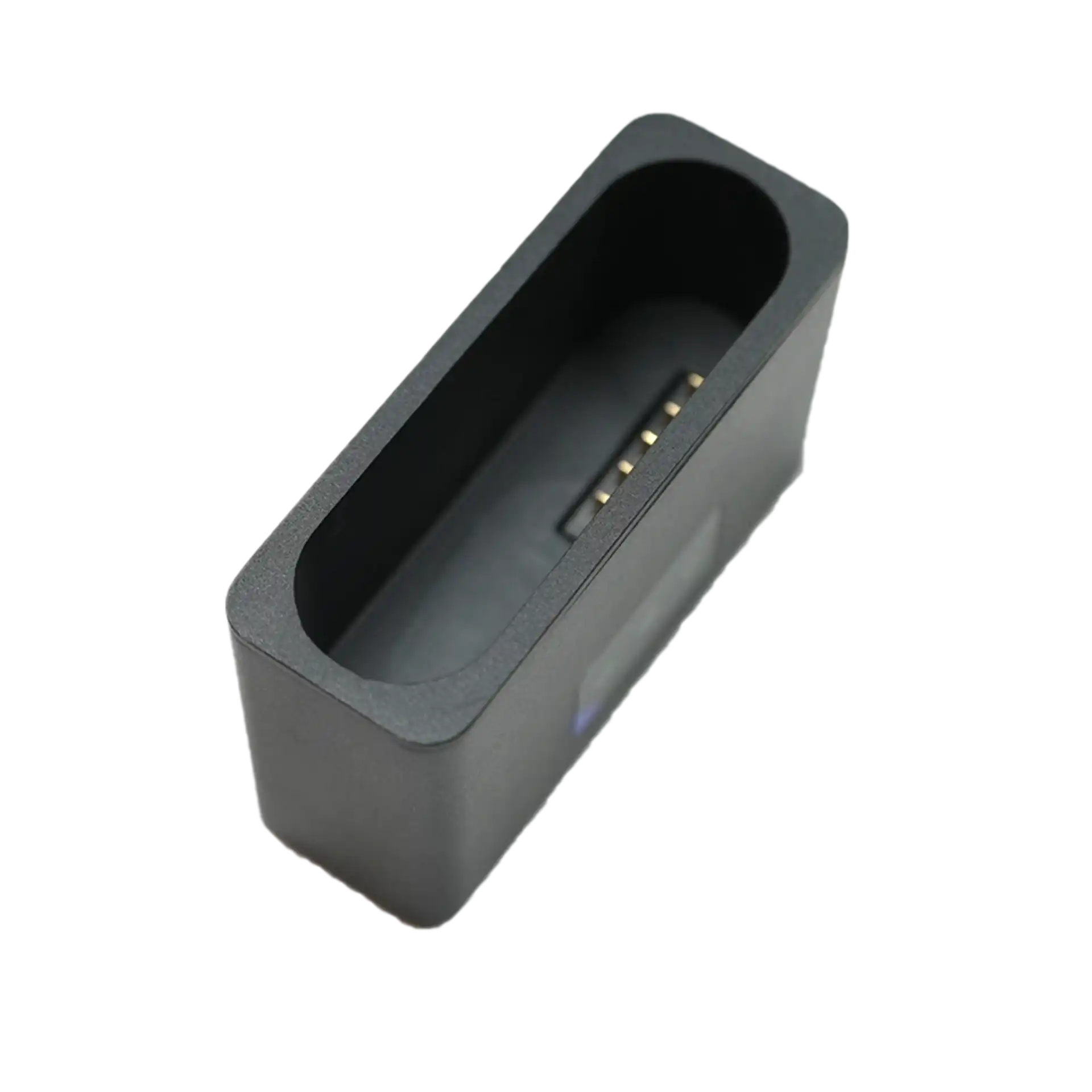

GSCH054D Portable Charger Compatible with the GS2054 Series
Product overview
Product overview

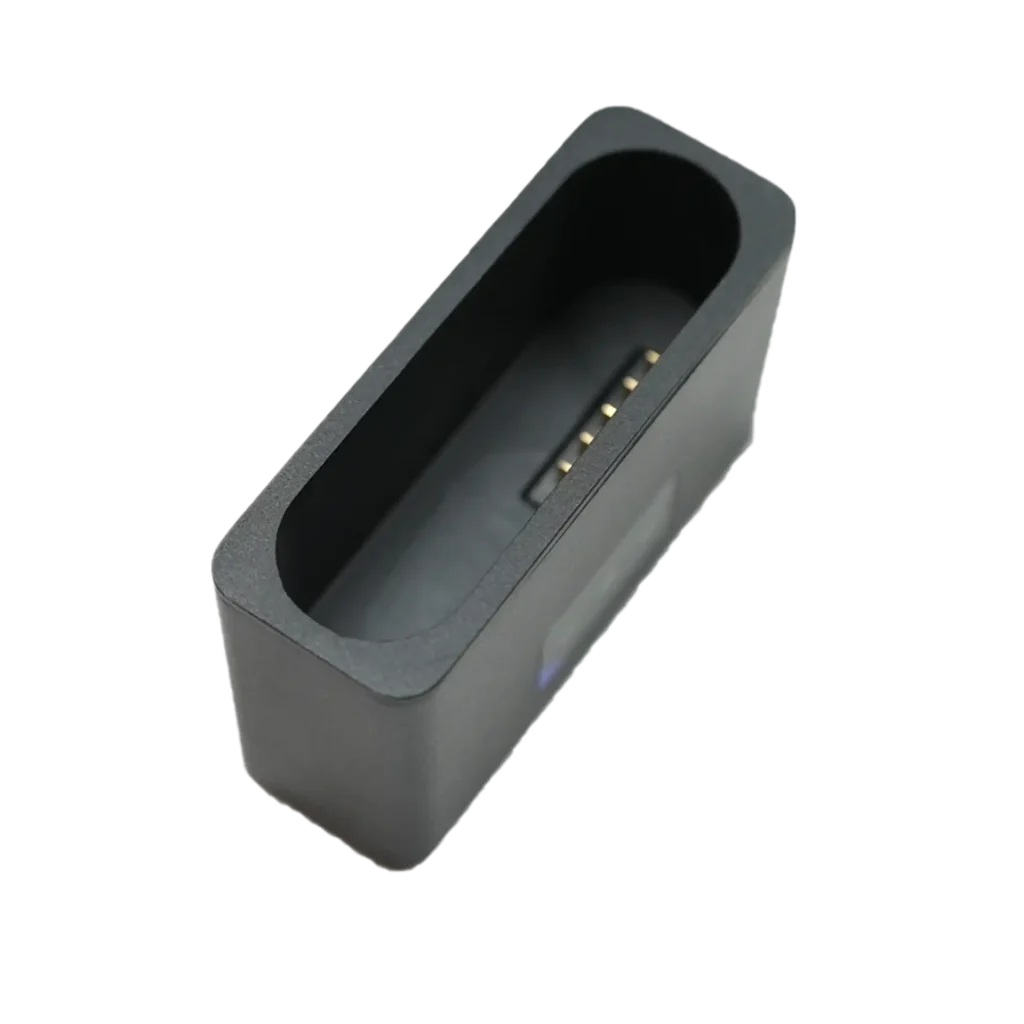

GSCH054D Portable Charger Compatible with the GS2054 Series
Technical specifications
Electrical, mechanical and integration data
Electrical performance
- Input voltage
- 19-24VDC
- Input power
- ≥38W
- Output voltage
- 16.8V
- Charging current
- 0-2.0A
- Maximum output power
- 33.6W
- Charging efficiency
- ＞85%
- Safety certification
- CE/FCC
Dimensions
- Length
- 87.6mm ± 0.3mm
- Width
- 33.2mm ± 0.3mm
- Height
- 50.6mm ± 0.3mm
- Weight
- 73g ± 5g
LED instruction
- Power on
- Right light on
- Charging
- Left light on
- Fully charged
- Middle light on
Recommended adapter（Optional）
- Model
- GSP19V048W55210
- Rated voltage /current
- 19V/2.5A
- Rated Power
- 47.5W
