Overview
- Input interface
- 2.5φx5.5φDC
- Output Interface
- 5PIN Blade smart battery interface
- Operate temperature
- -30°C~70°C
- Charge temperature
- 0°C~50°C
Standard smart battery

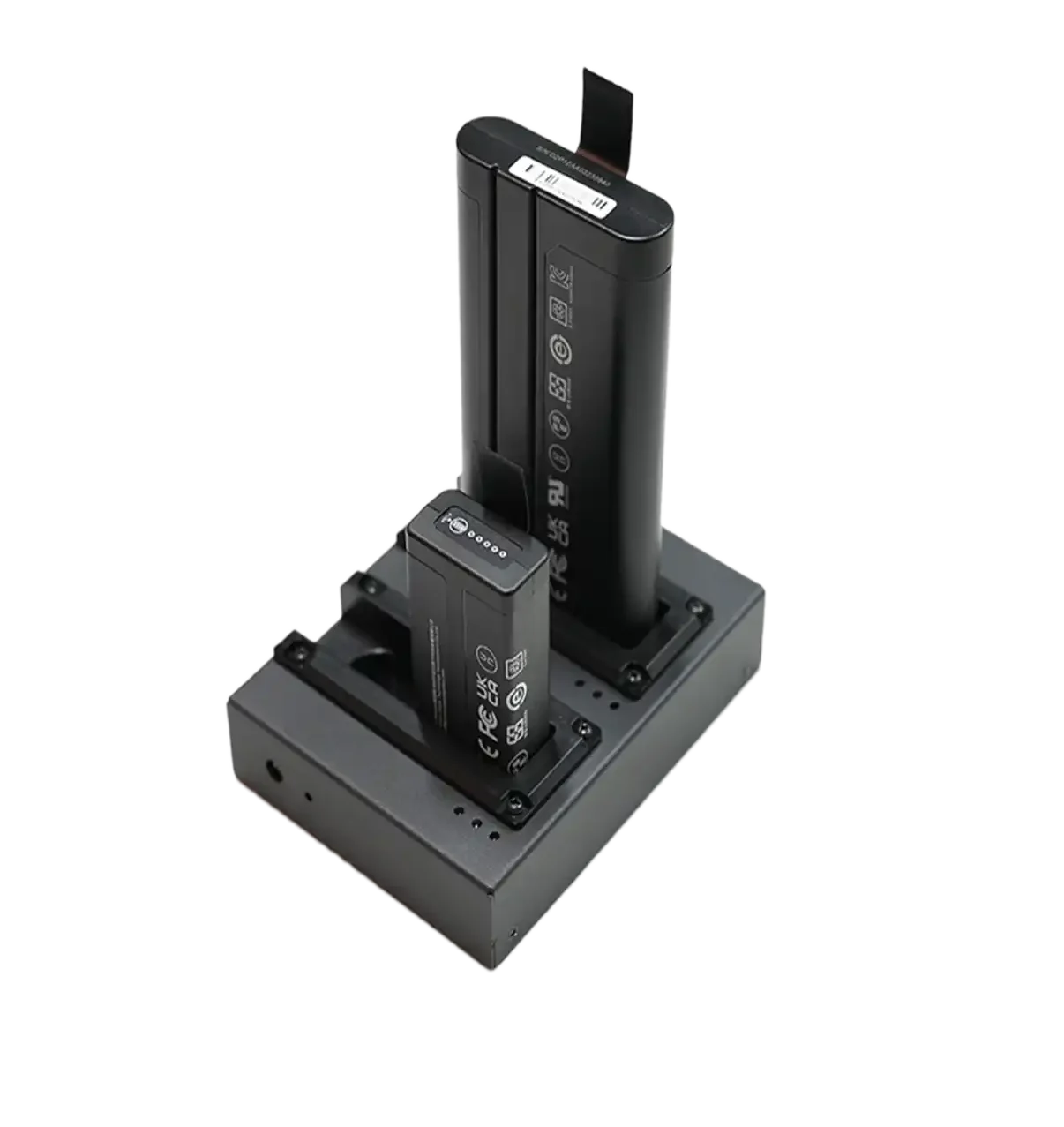

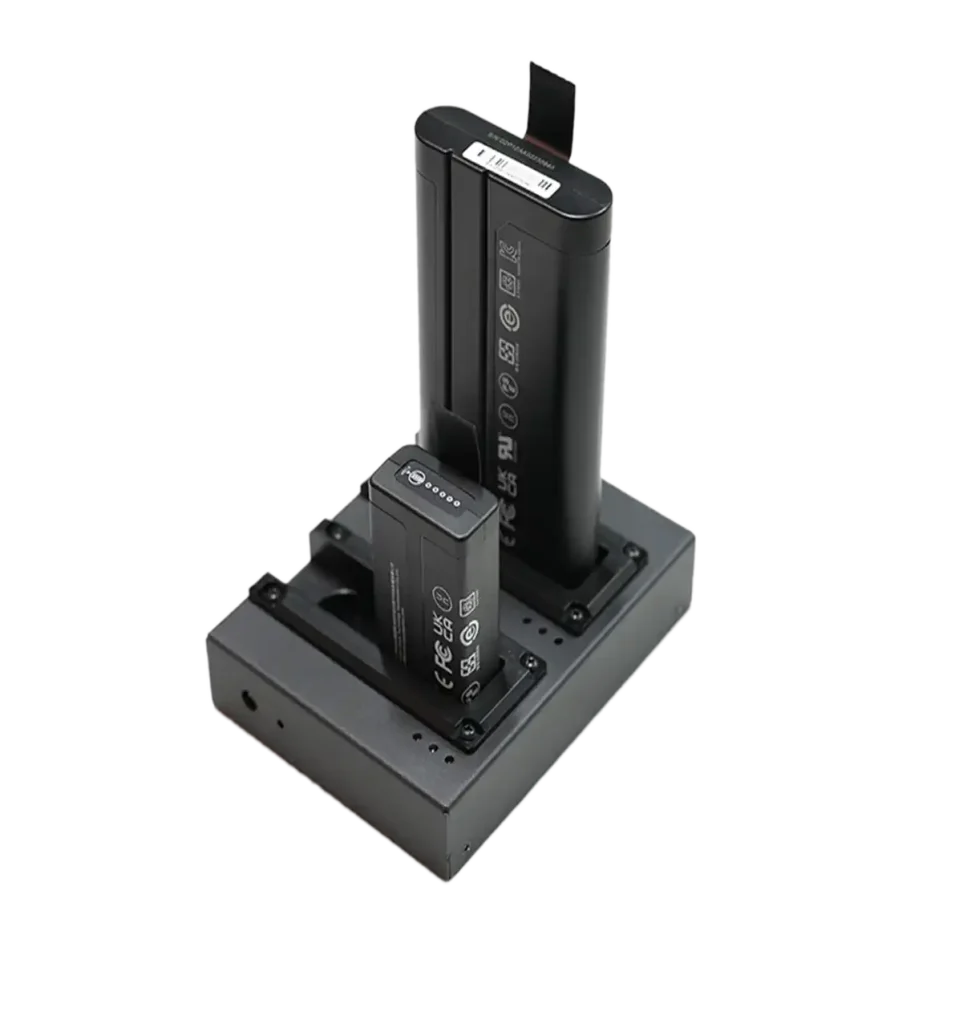

GSCH4040 Standard Smart Lithium Battery Pack
Smart Battery Charger Compatible with all TEFOO Standard Smart Batteries
Product overview
Product overview
Smart Battery Charger Compatible with all TEFOO Standard Smart Batteries
Technical specifications
Electrical, mechanical and integration data
Electrical performance
- Input power
- 9-24VDC（The input voltage should be higher than 1V of the standard battery charging voltage）
- Output voltage
- ≥120W
- Charging current
- 0-16.8V（Suitable for 2~4 series Smart battery packs）
- Maximum output power
- 50.4W
- Charging efficiency
- ＞85%
- Safety certification
- CE/FCC
Dimensions
- Length
- 145.0mm ± 0.5mm
- Width
- 111.5mm ± 0.5mm
- Height
- 38.0mm ± 1mm
LED instruction
- Power on
- Blue light is always on
- Charging
- Green light flashing
- Fully charged
- Green light is always on
- Failure
- Red light is always on
Recommended adapter（Optional）
- Model
- GSP19V120W55250
- Rated voltage /current
- 19.5V/6.15A
- Rated Power
- 120W
