Electrical parameters
- Input voltage
- 10 ~ 30VDC
- Rated output voltage
- 19V DC
- Rated output current
- 5.2A
- Max output power
- 100W
- Efficiency
- ＞85%
Standard smart battery

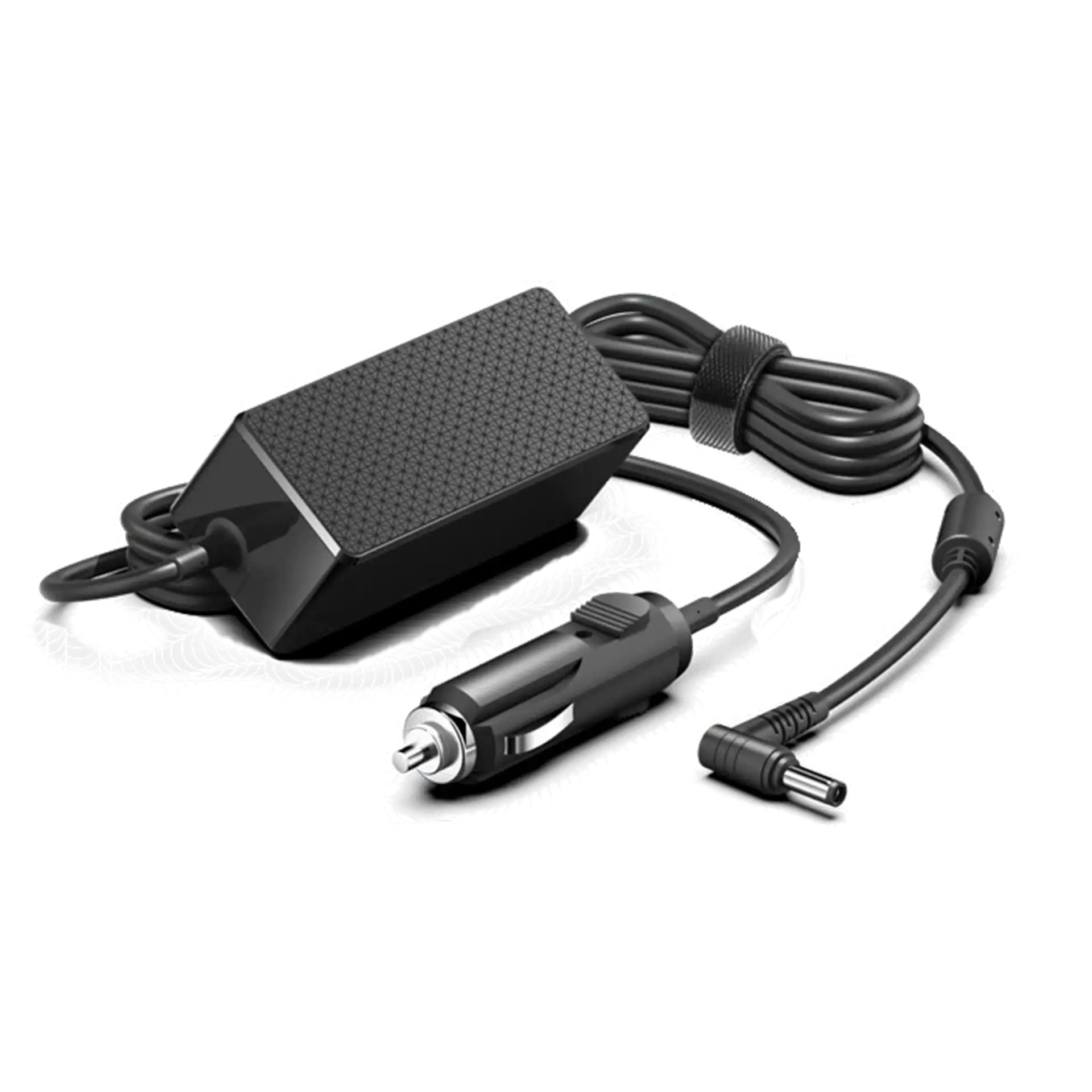

GSCAR19V5525100W Standard Smart Lithium Battery Pack
19V/5.2A/100W
Product overview
Product overview
19V/5.2A/100W
Technical specifications
Electrical, mechanical and integration data
Safety
- EMC
- EN50498：2010 FCC 47 CFR Part 15 Subpart B,ANSI C63.4-2014 UL2089

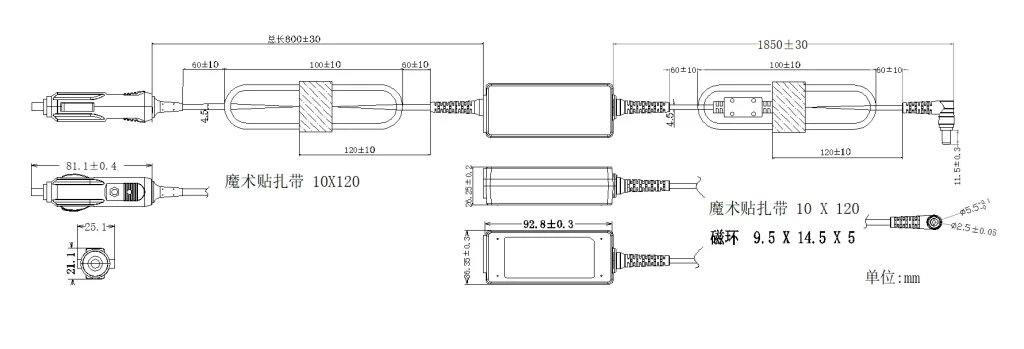

Dimensions
- Length
- 92.8±0.3mm
- Width
- 36.35±0.3mm
- thickness
- 26.25±0.3mm
- weight
- TBD
Interface
- Input
- Cigarette lighter
- Input Lead length
- 800±30mm
- Output
- 5.5×2.5φDC
- Output Lead length
- 1850±30mm
- Interface
Recommended charging solutions
Choose a compatible charger for your battery
Battery charger
GSCH4040
Smart Battery Charger Compatible with all TEFOO Standard Smart Batteries
View Details
Battery charger
GSCH40
Smart Battery Charger Compatible with all TEFOO Standard Smart Batteries
View DetailsAsk TEFOO about GSCAR19V5525100W
Submit Inquiry
