Electrical
- Input voltage
- 90- 264VAC
- Input frequency range
- 47-63Hz
- Output rated voltage
- 19V DC
- Output rated current
- 1.5A
- Maximum power
- 28.5W
- Conversion efficiency
- ≥86.2%
Standard smart battery

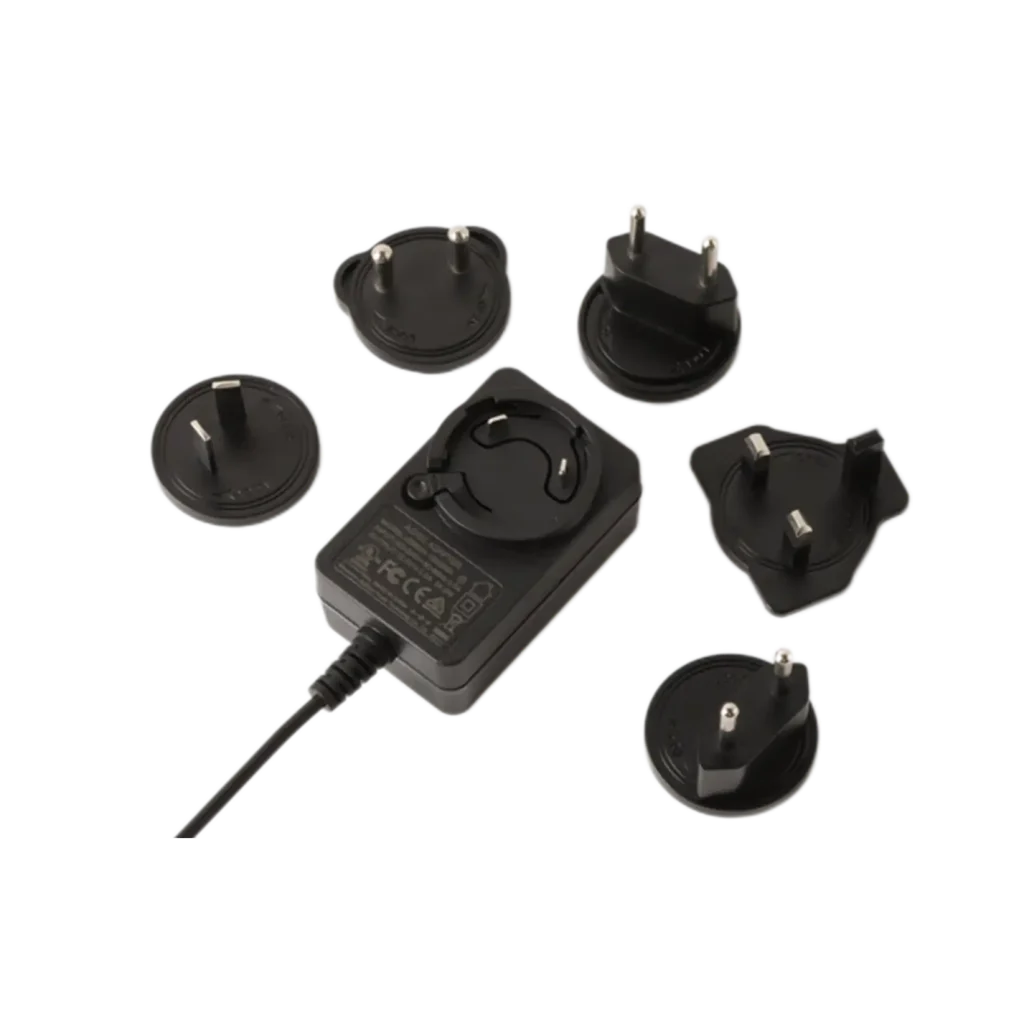

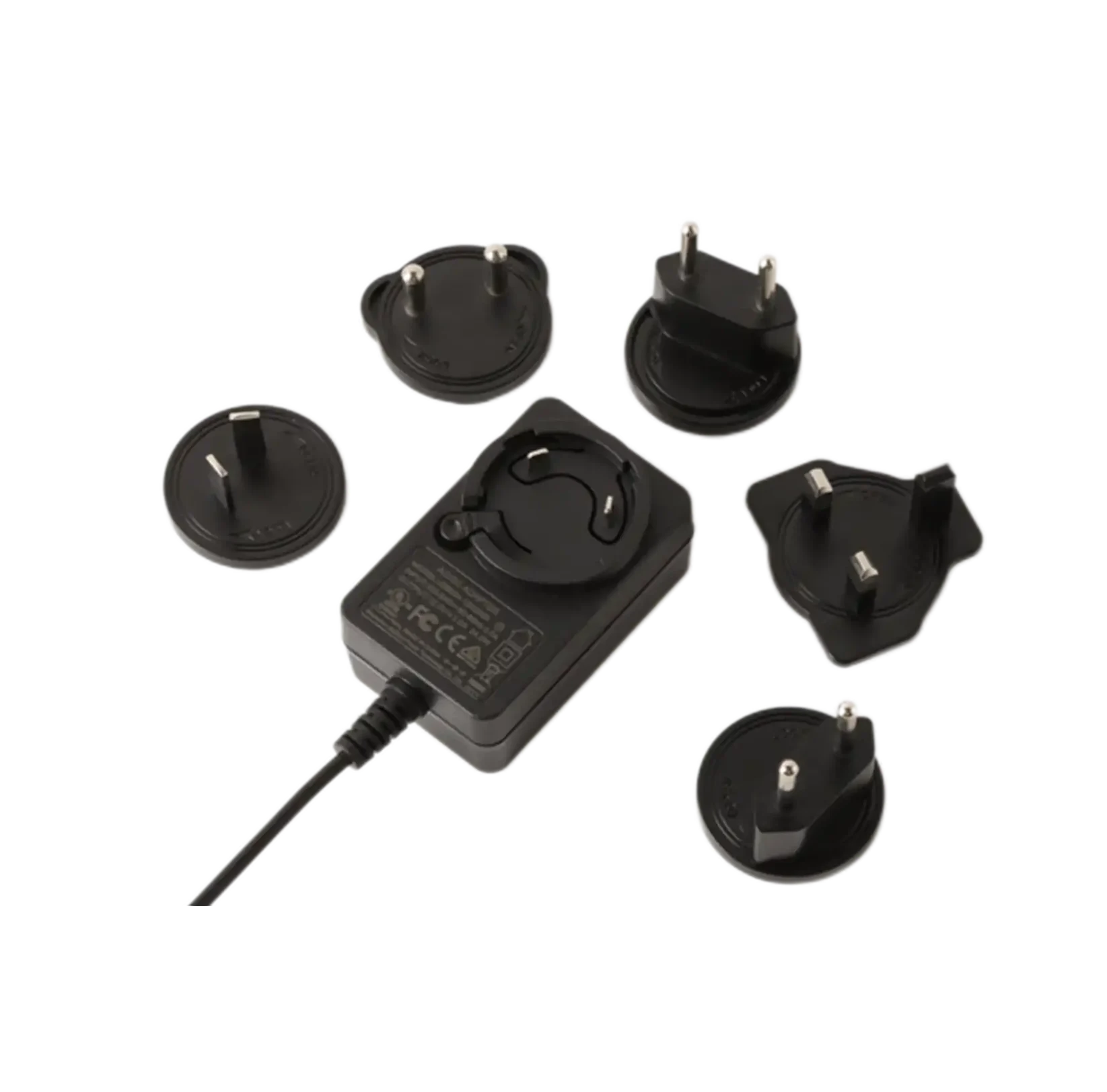

GSP19V029W35135 Adapter Standard Smart Lithium Battery Pack
19V / 1.5A / 28.5W MA
Product overview
Product overview
19V / 1.5A / 28.5W MA
Technical specifications
Electrical, mechanical and integration data
Safety and reliability
- Safe
- UL62368，GB4943.1-2011
- EMC
- EN55032，EN55024，EN55035 GB17625.1-2012
Dimensions
- Length
- 71.4mm ± 0.3mm
- Width
- 44.4mm ± 0.3mm
- Thickness
- 31.5mm ± 0.3mm
- Weight
- 140g ± 10g
Interface
- AC input
- Two-pin plug，Optional：CCC、UL（PSE）、BS、CE（KC）、SAA
- DC output
- 1.35φ x 3.5φ DC 9mm
- DC output lead length
- 1200 ± 50mm
