Electrical
- Input voltage
- 90- 264VAC
- Input frequency range
- 47-63Hz
- Output rated voltage
- 19.5V DC
- Output rated current
- 6.15A
- Maximum power
- 120W
- Conversion efficiency
- ≥85%
Standard smart battery

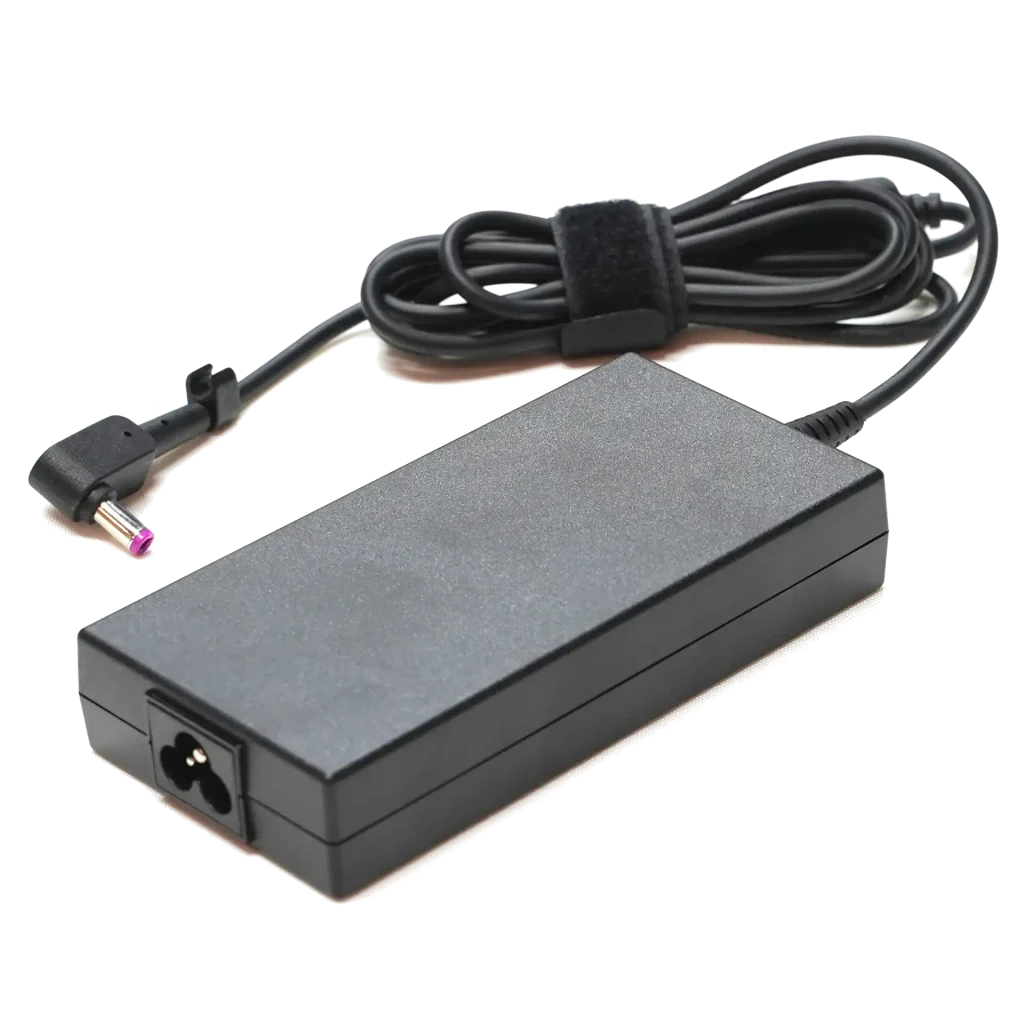

GSP19V120W55250 Adapter Standard Smart Lithium Battery Pack
19.5V / 6.15A / 120W MAX
Product overview
Product overview
19.5V / 6.15A / 120W MAX
Technical specifications
Electrical, mechanical and integration data
Safety and reliability
- Safe
- UL / CSA / CCC / BSM / PCBC / CE / FIMKO / DEMIKO / NEMIKO / SIMKO / TUV
- EMC
- IEC 61000-4.3 Radiated Immunity (RS), CISPR32 CLASS-B IEC 61000-4.6 Conducted Immunity (CS), CISPR32 CLASS-B EN55032 Class B EN610003-3

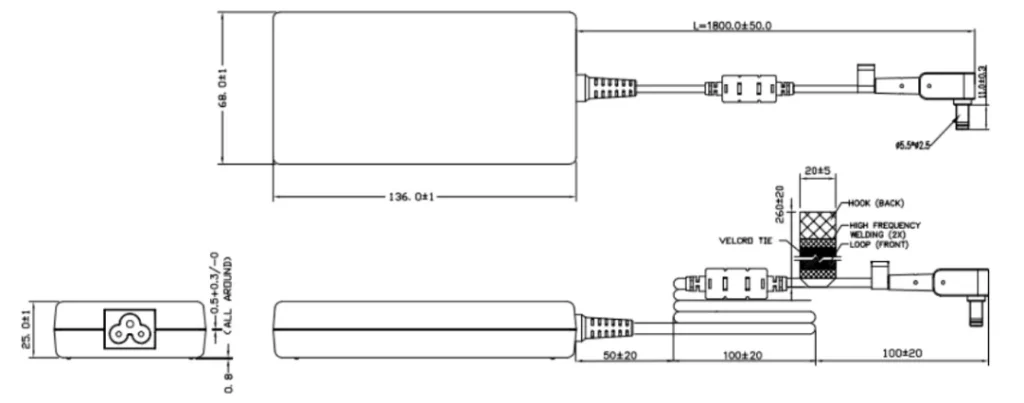

Dimensions
- Length
- 136mm ± 1.0mm
- Width
- 68mm ± 1.0mm
- Thickness
- 25mm ± 1.0mm
- Weight
- 365g ± 10g
Interface
- AC input
- IEC 320，C6 CERTIFIED，3 WAY
- AC input lead length
- 1500 ± 30mm
- DC output
- 2.5φ x 5.5φ DC 11mm
- DC output lead length
- 1800 ± 50mm
- Interface
