Electrical
- Input voltage
- 90- 264VAC
- Input frequency range
- 47-63Hz
- Output rated voltage
- 24V DC
- Output rated current
- 2.5A
- Maximum power
- 60W
- Conversion efficiency
- ≥86.2%
Standard smart battery

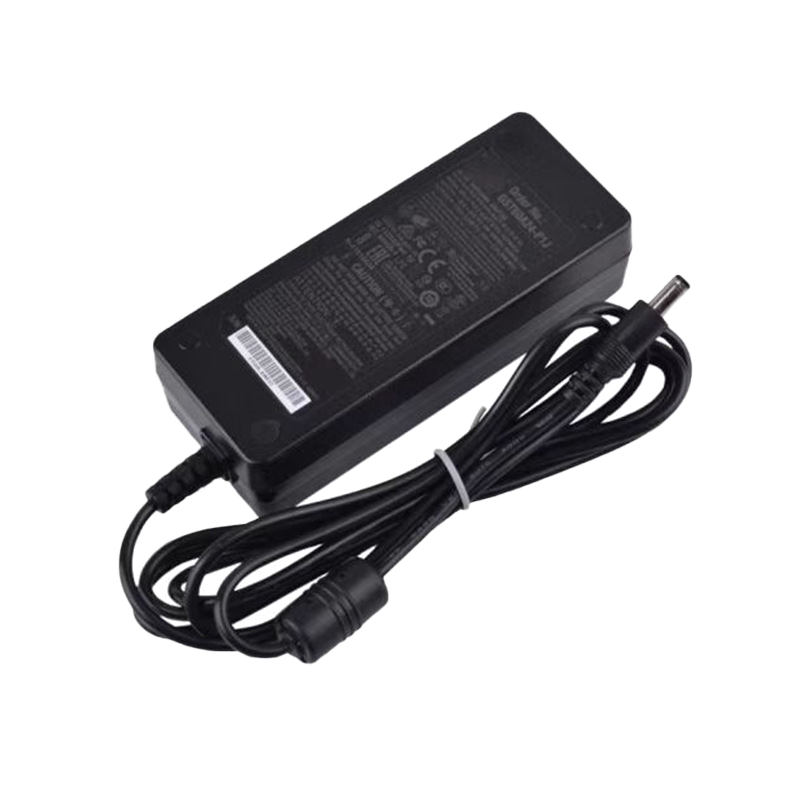

GSP24V060W55210 Adapter Standard Smart Lithium Battery Pack
24V / 2.5A / 60W MAX
Product overview
Product overview
24V / 2.5A / 60W MAX
Technical specifications
Electrical, mechanical and integration data
Safety and reliability
- Safe
- GB4943,UL62368-1,TUV BS EN/EN62368-1C input
- EMC
- EN55032 class B, EN61000-4-2,3,4,5,6,8,11

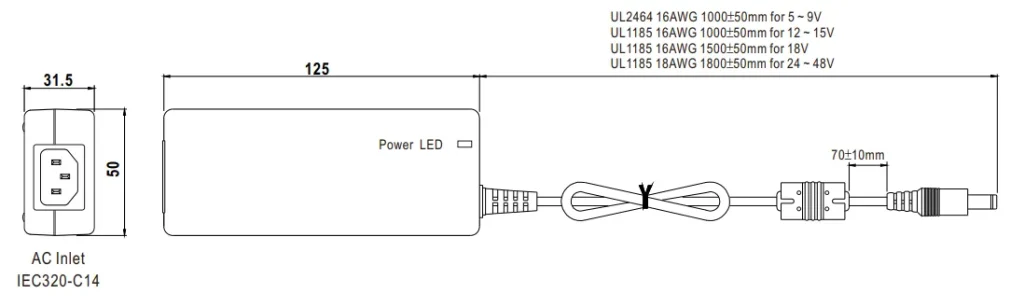

Dimensions
- Length
- 125mm ± 0.3mm
- Width
- 50mm ± 0.3mm
- Thickness
- 31.5mm ± 0.3mm
- Weight
- 305g ± 10g
Interface
- AC input
- IEC 320，C14 CERTIFIED，3 WAY
- AC input lead length
- 1000 ± 50mm
- DC output
- 2.1φ x 5.5φ DC 10mm
- DC output lead length
- 1800 ± 50mm
- Interface
