Open product imageGS2024HH

Standard smart battery

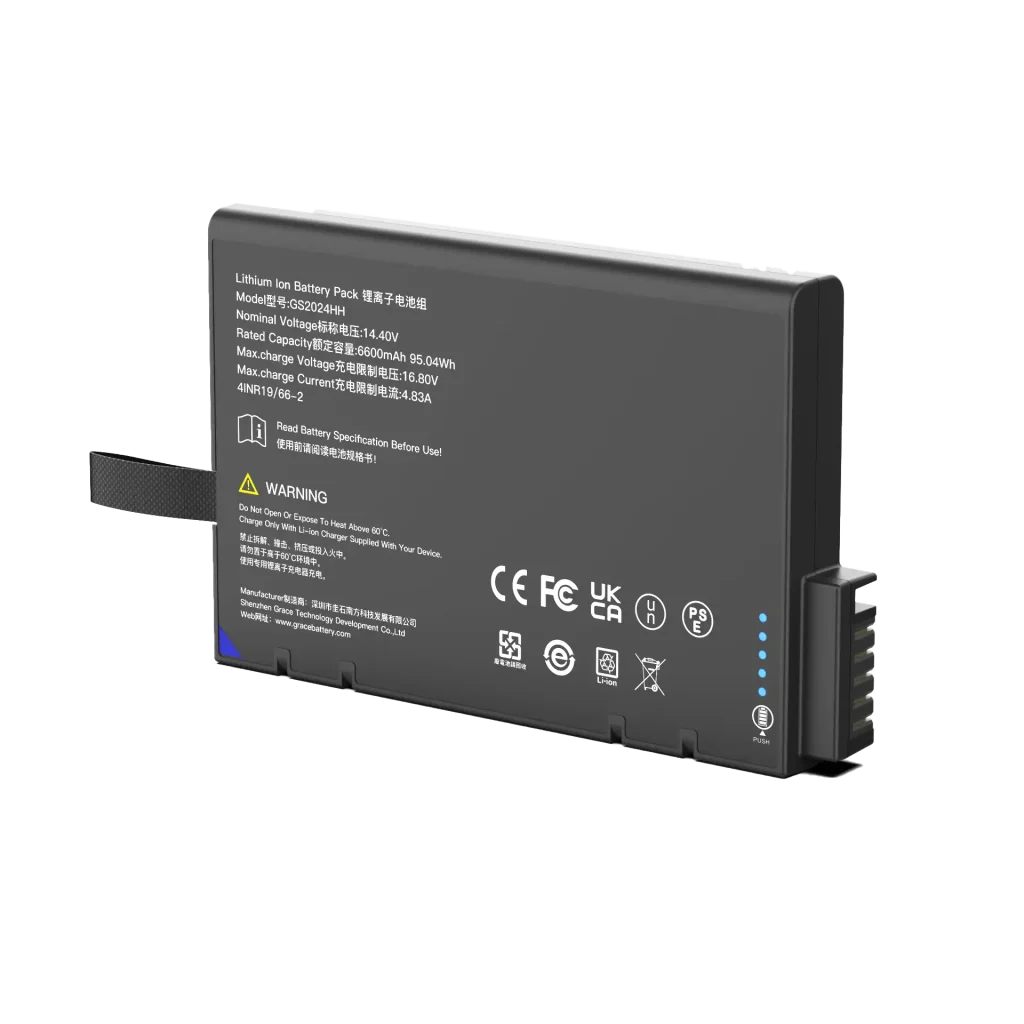

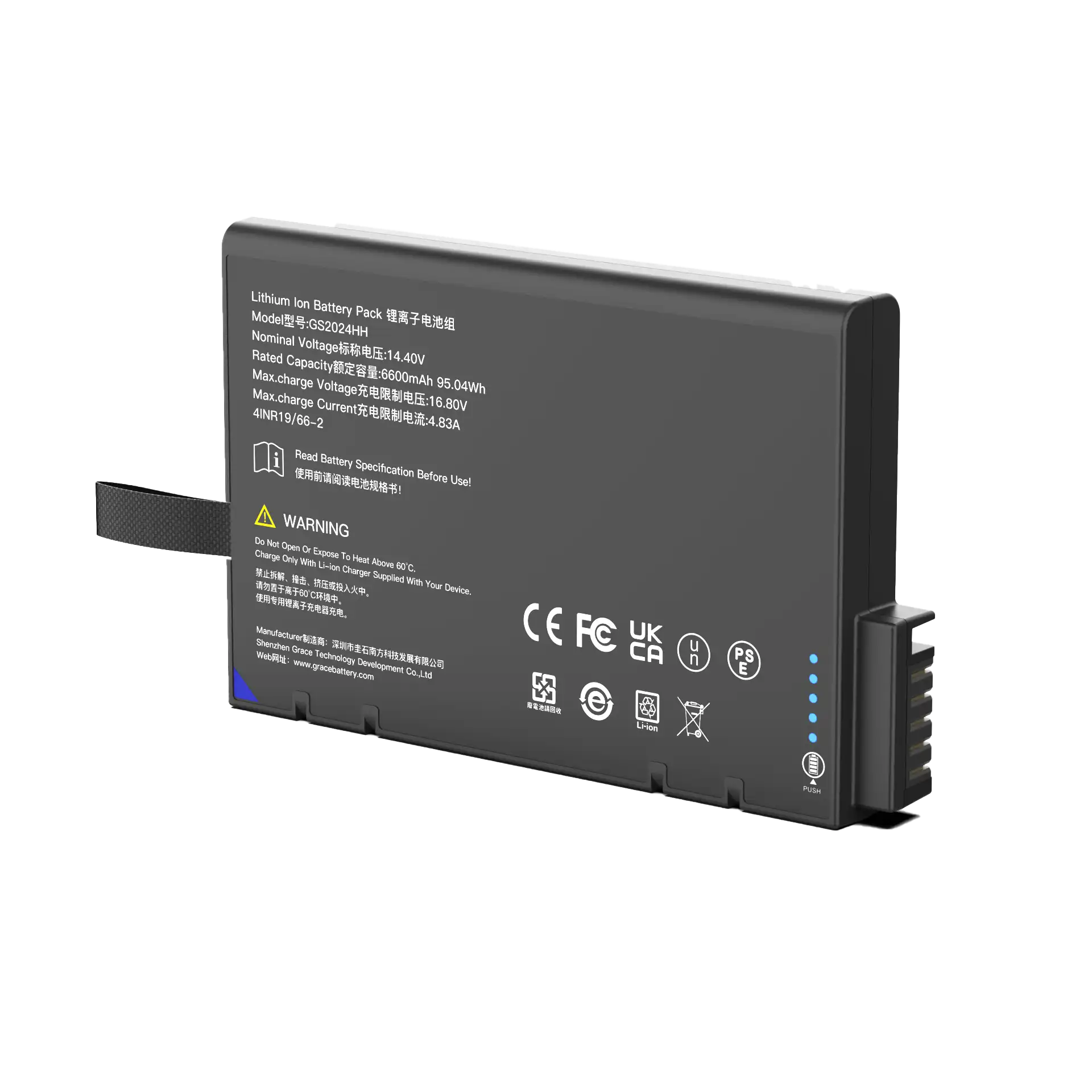

GS2024HH Standard Smart Lithium Battery Pack

14.4V/6900mAh/95.04Wh

Rated voltage14.4V
Nominal capacity6900mAh
Weight500g±10g
Request QuoteDownload Datasheet

Product overview

Product overview

4S2P Lithium-ion Battery Pack GS2024HH is a medical equipment battery designed to power non-invasive ventilators quickly and efficiently. TEFOO helps you get your devices ready for production ASAP.

Technical specifications

Electrical, mechanical and integration data

Download PDF

Information

Factory capacity
20%~30%
Compliance information
CE/FCC/IEC62133/UN38.3/PSE/UKCA/UL2054/ REACH/RoHS/(EU) 2023/1542
Operating temperature
0°C~50°C (Charge) -20°C~60°C (Discharge)
Storage temperature
-20°C~50°C（Maximum） -20°C~25°C（Recommend）

Electrical parameters

Rated voltage
14.4V
Rated capacity
6600mAh
Nominal capacity
6900mAh
Internal resistance
＜150mΩ@1kHz at 25℃
Maximum charging current
4.83A
Maximum charging voltage
16.8V
Maximum discharge current
15.0A
Cycle life
500 cycles≥80% Rated capacity

Dimensions

Length
167.3mm ± 0.3mm
Width
106.8mm ± 0.3mm
Thickness
21.4mm ± 0.3mm
Weight
500g±10g
Interface
Interface

Documentation

Download product documents

Access the PDF files prepared for this product model.
