Open product imageGS2054DH

Standard smart battery

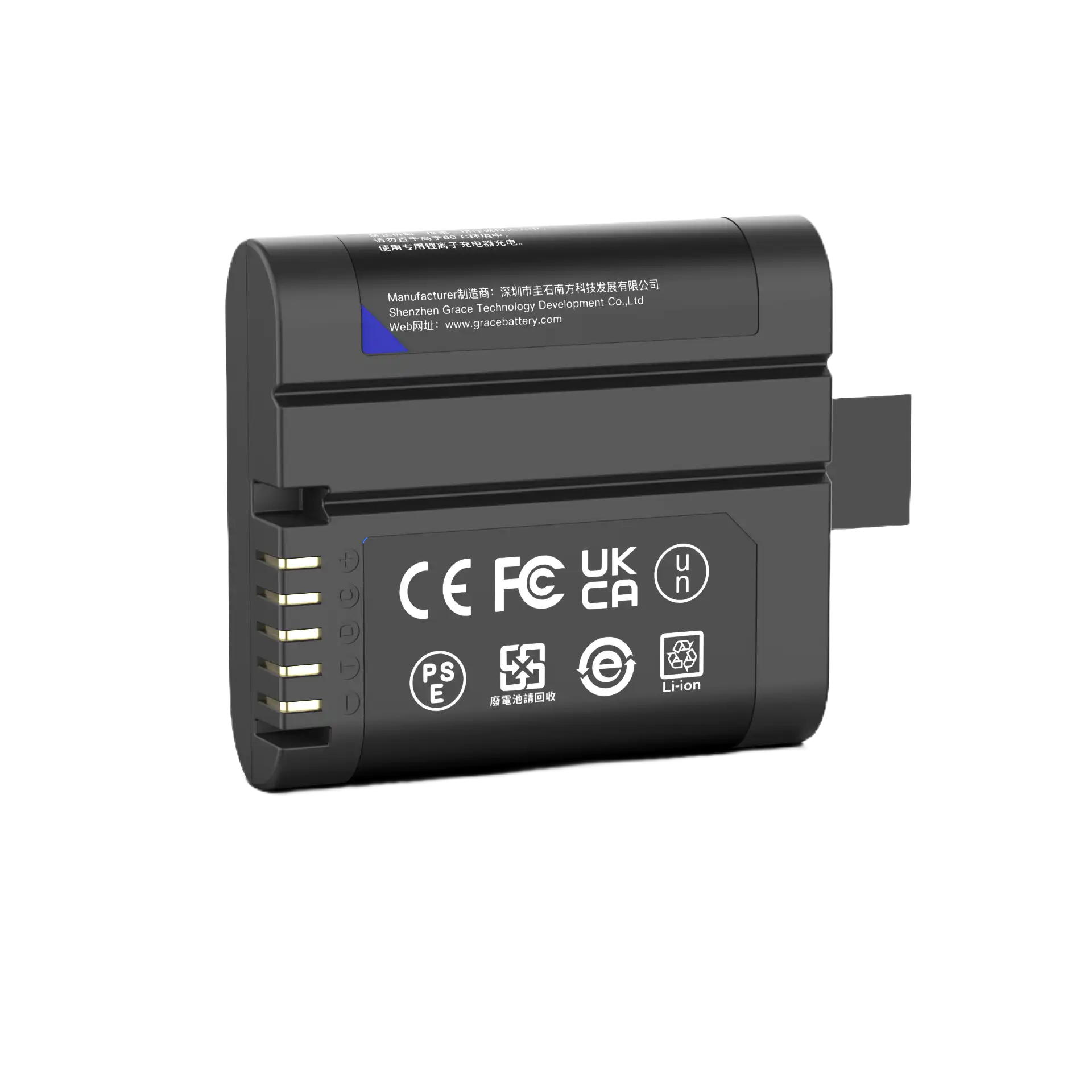

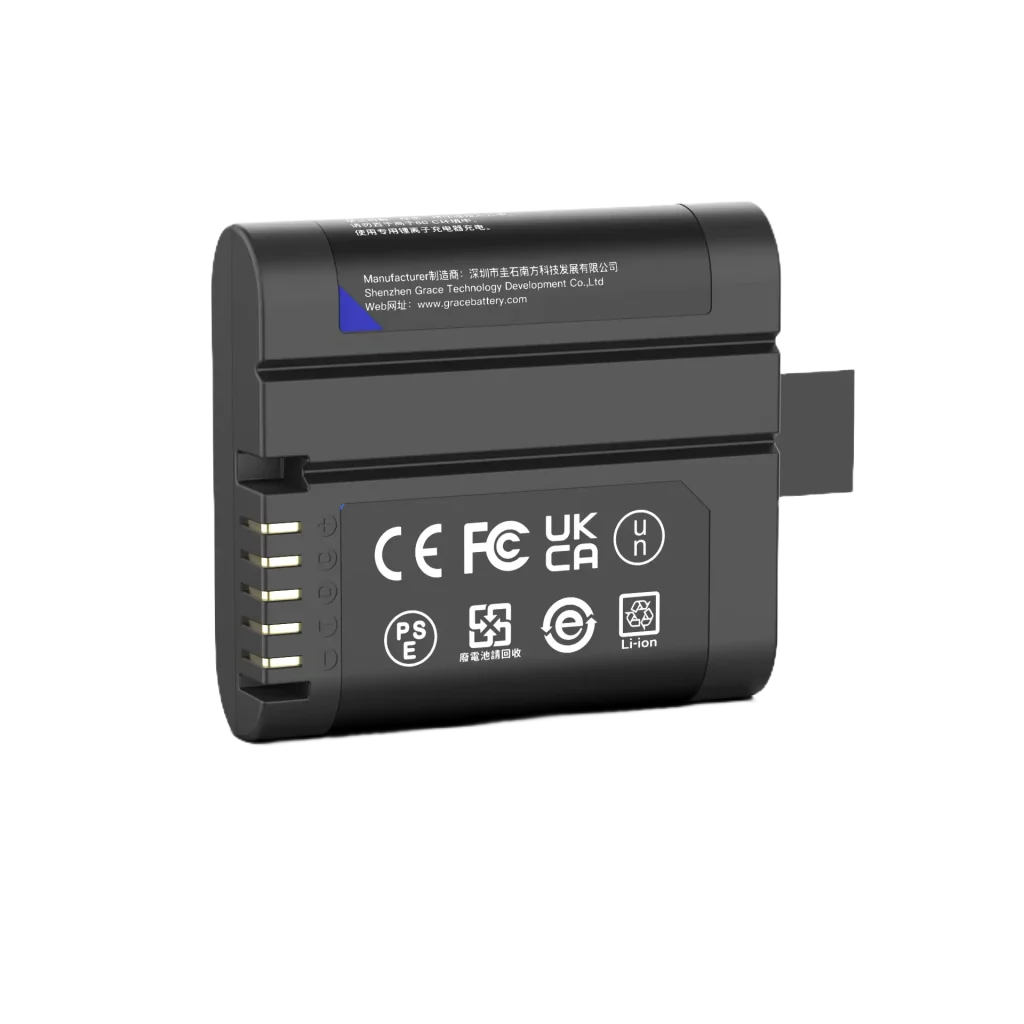

GS2054DH Standard Smart Lithium Battery Pack

14.4V/3450mAh/47.52Wh

Rated voltage14.4V
Nominal capacity3450mAh
Weight235g±10g
Request QuoteDownload Datasheet

Product overview

Product overview

4S1P Standard Battery Pack GS2054DH With CCC Certification is a medical equipment battery designed to power your CT scanners and medical imaging devices. TEFOO helps you get your devices ready for production ASAP.

Technical specifications

Electrical, mechanical and integration data

Download PDF

Information

Factory capacity
20%~30%
Compliance information
CE/FCC/IEC62133/UN38.3/PSE/UKCA/REACH/RoHS/ (EU) 2023/1542/CCC/KC/RCM
Operating temperature
0°C~50°C (Charge) -20°C~60°C (Discharge)
Storage temperature
-20°C~50°C（Maximum） -20°C~25°C（Recommend）

Electrical parameters

Rated voltage
14.4V
Rated capacity
3300mAh
Nominal capacity
3450mAh
Internal resistance
＜200mΩ@1kHz at 25℃
Maximum charging current
1.65A
Maximum charging voltage
16.8V
Maximum discharge current
4.0A
Cycle life
500 cycles≥80% Rated capacity

Dimensions

Length
85.1mm ± 0.3mm
Width
77.4mm ± 0.3mm
Thickness
22.7mm ± 0.3mm
Weight
235g±10g
Interface
Interface

Documentation

Download product documents

Access the PDF files prepared for this product model.
