Open product imageGS2020IM

Standard smart battery

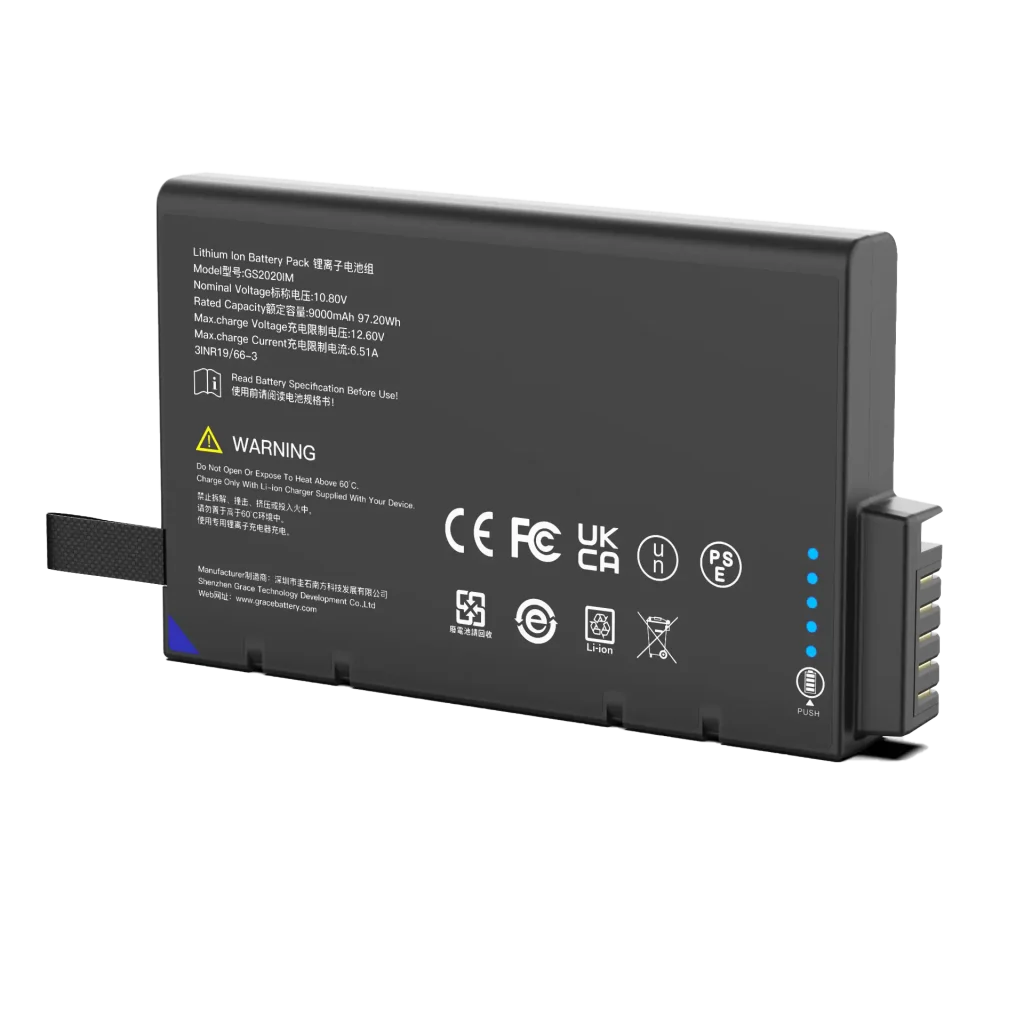

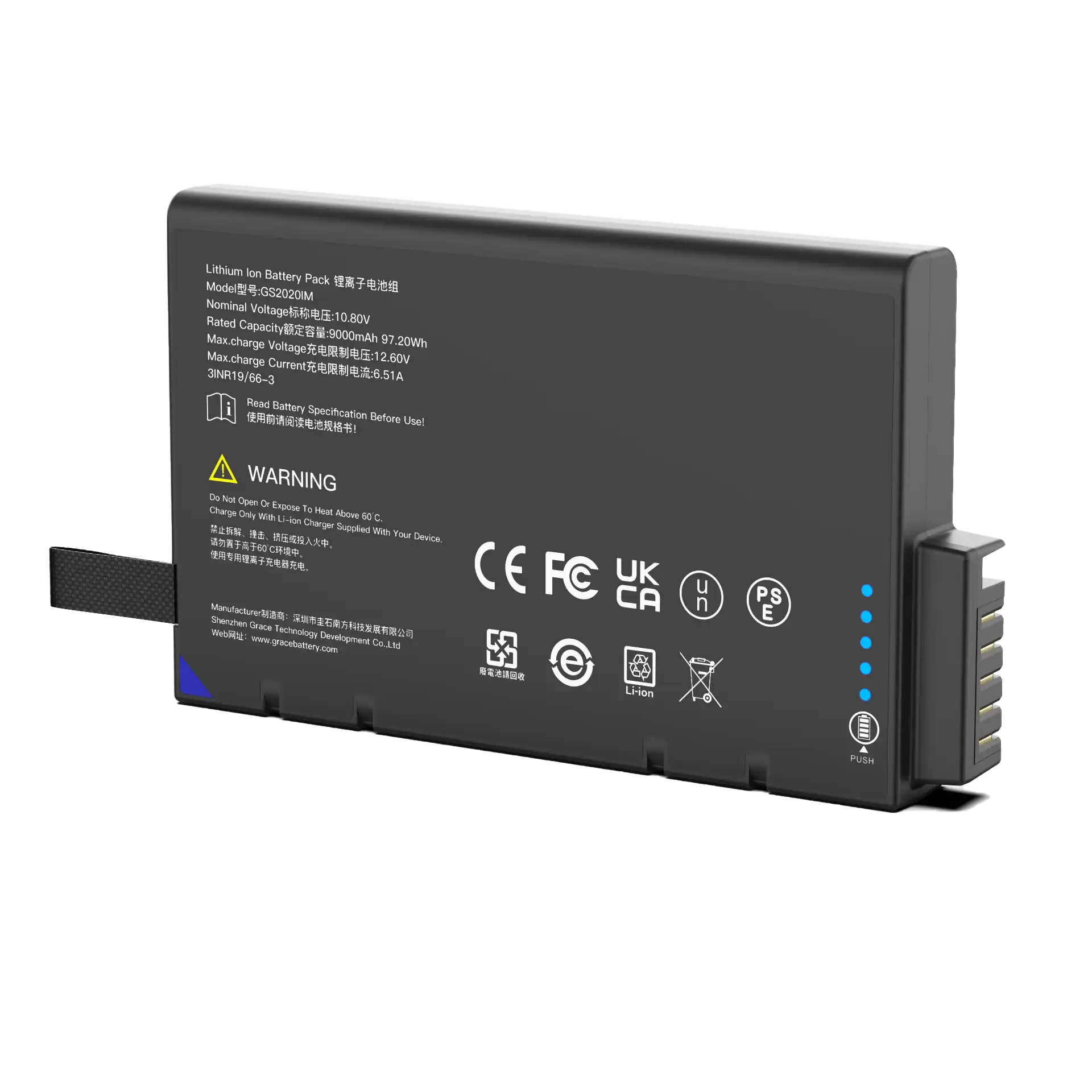

GS2020IM Standard Smart Lithium Battery Pack

10.8V/9300mAh/97.2Wh

Nominal capacity9300mAh
Maximum charging voltage12.6V
Weight480g±10g
Request QuoteDownload Datasheet

Product overview

Product overview

3S3P Lithium-ion Battery Pack GS2020IM is a medical equipment battery designed to power your life detector devices quickly and efficiently. TEFOO helps you get your devices ready for production ASAP.

Technical specifications

Electrical, mechanical and integration data

Download PDF

Information

Factory capacity
20%~30%
Compliance information
CE/FCC/IEC62133/UN38.3/PSE/UKCA/REACH/RoHS/ (EU) 2023/1542/GOST-R
Operating temperature
0°C~50°C (Charge) -20°C~60°C (Discharge)
Storage temperature
-20°C~50°C（Maximum） -20°C~25°C（Recommend）

Electrical parameters

Rated voltage
10.8V
Rated capacity
9000mAh
Nominal capacity
9300mAh
Internal resistance
＜100mΩ@1kHz at 25℃
Maximum charging current
6.51A
Maximum charging voltage
12.6V
Maximum discharge current
10.0A
Cycle life
1000 cycles≥70% Rated capacity

Dimensions

Length
148.9mm ± 0.3mm
Width
88.8mm ± 0.3mm
Thickness
19.8mm ± 0.3mm
Weight
480g±10g
Interface
Interface

Documentation

Download product documents

Access the PDF files prepared for this product model.

Recommended charging solutions

Choose a compatible charger for your battery

Browse all chargers

GSCH4040
Battery charger

GSCH4040

Smart Battery Charger Compatible with all TEFOO Standard Smart Batteries

View Details

GSCH40
Battery charger

GSCH40

Smart Battery Charger Compatible with all TEFOO Standard Smart Batteries

View Details
