Open product imageGS2040IM

Standard smart battery

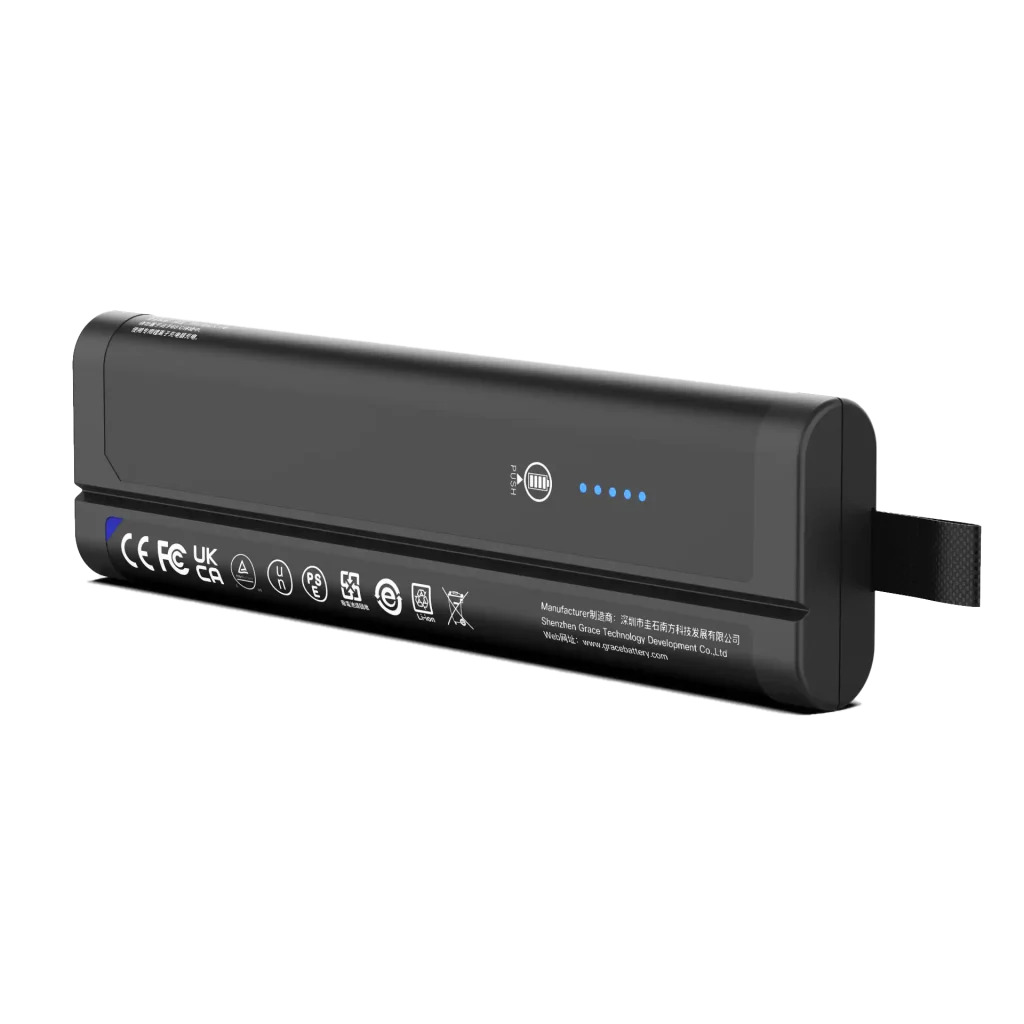

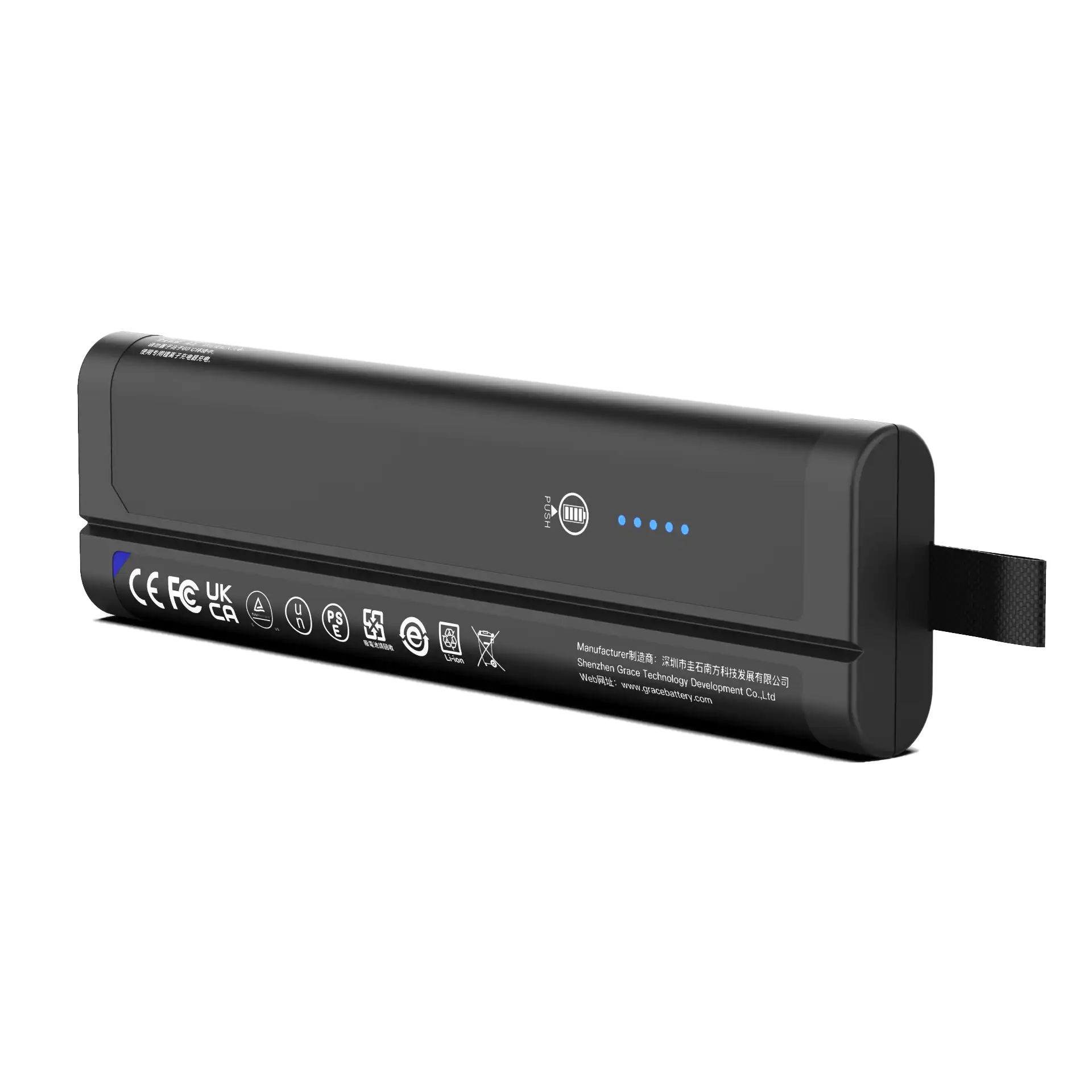

GS2040IM Standard Smart Lithium Battery Pack

10.8V/9300mAh/97.2Wh

Rated voltage10.8V
Nominal capacity9300mAh
Weight500g±10g
Request QuoteDownload Datasheet

Product overview

Product overview

3S3P Lithium-ion Battery Pack GS2040IM is a medical equipment battery designed to power your precision instruments. TEFOO helps you get your devices ready for production ASAP.

Technical specifications

Electrical, mechanical and integration data

Download PDF

Information

Factory capacity
20%~30%
Compliance information
CE/FCC/IEC62133/UN38.3/PSE/UKCA/REACH/RoHS/ (EU) 2023/1542/GOST-R
Operating temperature
0°C~50°C (Charge) -20°C~60°C (Discharge)
Storage temperature
-20°C~50°C（Maximum） -20°C~25°C（Recommend）

Electrical parameters

Rated voltage
10.8V
Rated capacity
9000mAh
Nominal capacity
9300mAh
Internal resistance
＜150mΩ@1kHz at 25℃
Maximum charging current
6.51A
Maximum charging voltage
12.6V
Maximum discharge current
8.0A
Cycle life
1000 cycles≥70% Rated capacity

Dimensions

Length
214.0mm ± 0.3mm
Width
58.5mm ± 0.3mm
Thickness
22.0mm ± 0.3mm
Weight
500g±10g
Interface
Interface

Documentation

Download product documents

Access the PDF files prepared for this product model.
