Information
- Factory capacity
- 20%~30%
- Operating temperature
- 0°C~60°C (Charge) -40°C~60°C (Discharge)
- Storage temperature
- -20°C~35°C（Recommend） -40°C~60°C（Ultimate temperature）
Standard smart battery

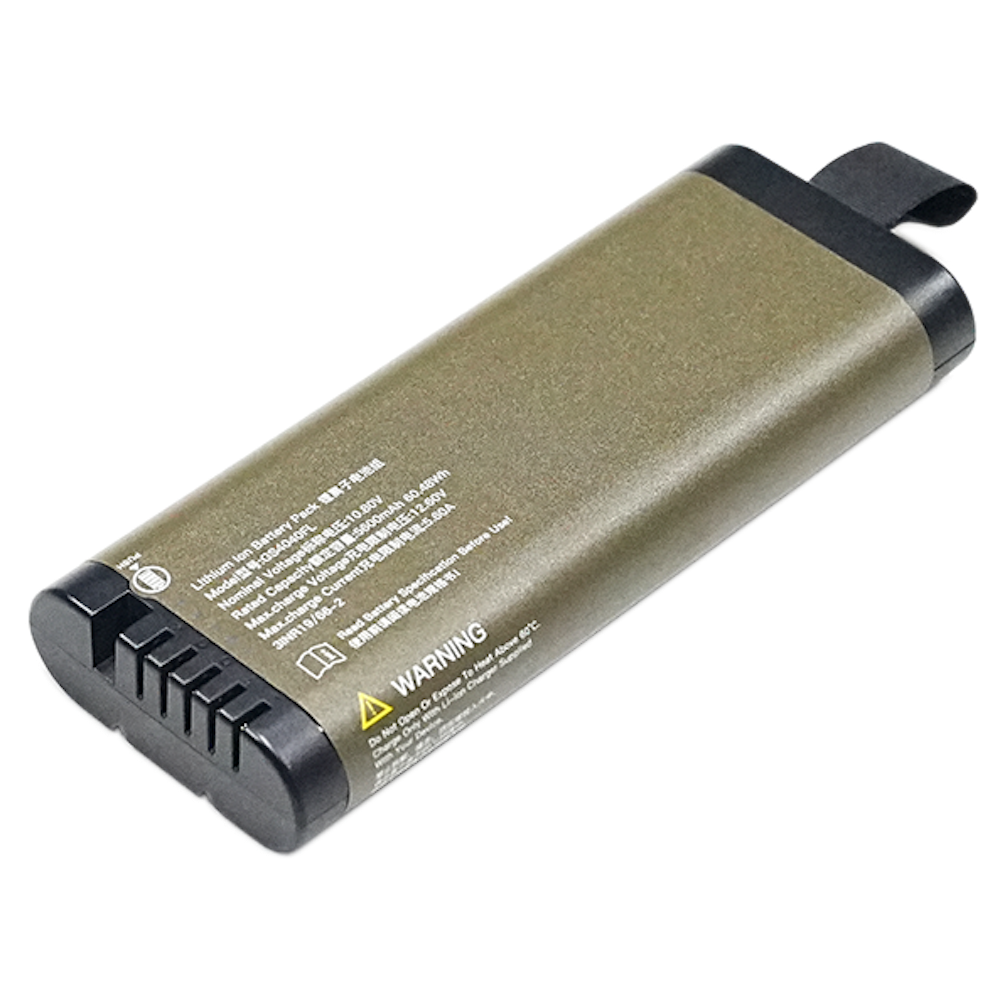

GS4040FL Standard Smart Lithium Battery Pack
10.8V/5600mAh/60.48Wh
Rated voltage10.8V
Nominal capacity5600mAh
Weight335g±10g
Product overview
Product overview
The TEFOO GS4040FL 3S3P low-temperature lithium-ion standard battery pack delivers reliable power for industrial instruments and medical devices operating in cold or harsh environments.
Technical specifications
Electrical, mechanical and integration data
Electrical parameters
- Rated voltage
- 10.8V
- Rated capacity
- 5400mAh
- Nominal capacity
- 5600mAh
- Internal resistance
- ＜100mΩ@1kHz at 25℃
- Maximum charging voltage
- 12.6V
- Maximum discharge current
- 10.0A
- Cycle life
- 500 cycles≥80% Rated capacity
Electrical performance
- Maximum charging current
- 5.6A
Dimensions
- Length
- 150.5mm ± 0.3mm
- Width
- 58.5mm ± 0.3mm
- Thickness
- 22.0mm ± 0.3mm
- Weight
- 335g±10g
- Interface
Documentation
Download product documents
Access the PDF files prepared for this product model.
Same voltage products
Explore more 10.8V battery products
Recommended charging solutions
Choose a compatible charger for your battery
Battery charger
GSCH4040
Smart Battery Charger Compatible with all TEFOO Standard Smart Batteries
View Details
Battery charger
GSCH40
Smart Battery Charger Compatible with all TEFOO Standard Smart Batteries
View DetailsAsk TEFOO about GS4040FL
Submit Inquiry
